Features:
• Fits existing Watco drains*
• Eliminates labor required to remove
and replace the drain.
• Eliminates the possibility of cross-threading
or damaging the tub when replacing the drain.
• Eliminates possibility of drain fitting moving
out of line due to being stressed during install.
(can require cutting open sheetrock to repair)
• Adapter bar to convert one-or two-hole
overflow plate to an Innovator®.
Options:
• Available in multiple finishes
• Innovator and One-Hole overflow plate
• Push Pull or Foot Actuated configurations
Quickly Change Bathtub
Finish On Overflow and
Bathtub Drain!
Want a quick way to change the look of your bathtub finishes? Replace with a Watco QuickTrim® Kit. The QuickTrim® snaps
right into the existing drain with no mess!
The QuickTrim® comes with a matching bathtub stopper and Innovator® snap-on overflow plate.
It’s that Simple! Purchase a Watco QuickTrim® Kit anytime you decide to change the look of your bathtub drain, stopper and overflow.
* Will fit existing Watco drains with cross-bars.

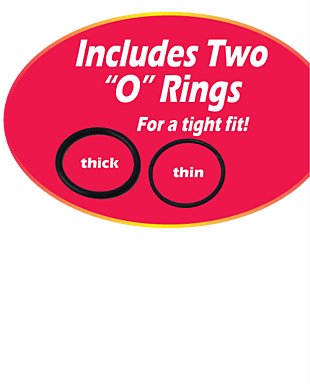

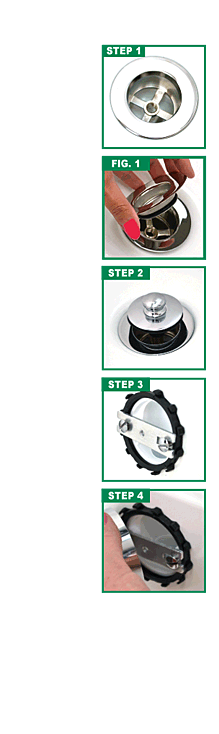

Remove the existing stopper, leaving the drain in the bathtub. Determined by the drain, place either the thin or thick “O” ring on the ridge of the drain for a “snug fit” and Place the supplied QuickTrim® drain body (Figure 1) over the old drain.
STEP 2
Insert New Bathtub Stopper! The QuickTrim bathtub drain and bathtub stopper, with its bright new finish is now securely in place (Figure 2) .
STEP 3
Convert existing 1-hole and 2-hole overflow plates to the Innovator® Snap-on Overflow Plate! Remove existing overflow plate. Secure adapter bar with screws and retainer star nut (behind adapter) to overflow elbow (Figure 3).
STEP 4
Snap the Innovator® overflow plate onto the retainer ring, making sure the opening on the overflow plate is facing down towards the tub (Figure 4).
It’s That Simple!
The QuickTrim® Kit including bathtub stopper and Innovator® overflow is now securely in place.
CARE OF PRODUCT FINISH: Do not use abrasive or caustic cleaning agents, as they may discolor or permanently damage the finish of the product.
Cleaning should be done using warm soapy water, applied with a clean soft cloth and dried with a clean soft cloth. DO NOT USE OIL-BASED PUTTY PRODUCTS:
Watco does not recommend and does not warranty this product when oil/petroleum based plumber’s putty is used when installing this product.
